Heated Heavy Duty Backup Camera: IR Night Vision & Defrost

PRODUCT INTRODUCTION

Model number: ST-800A-H

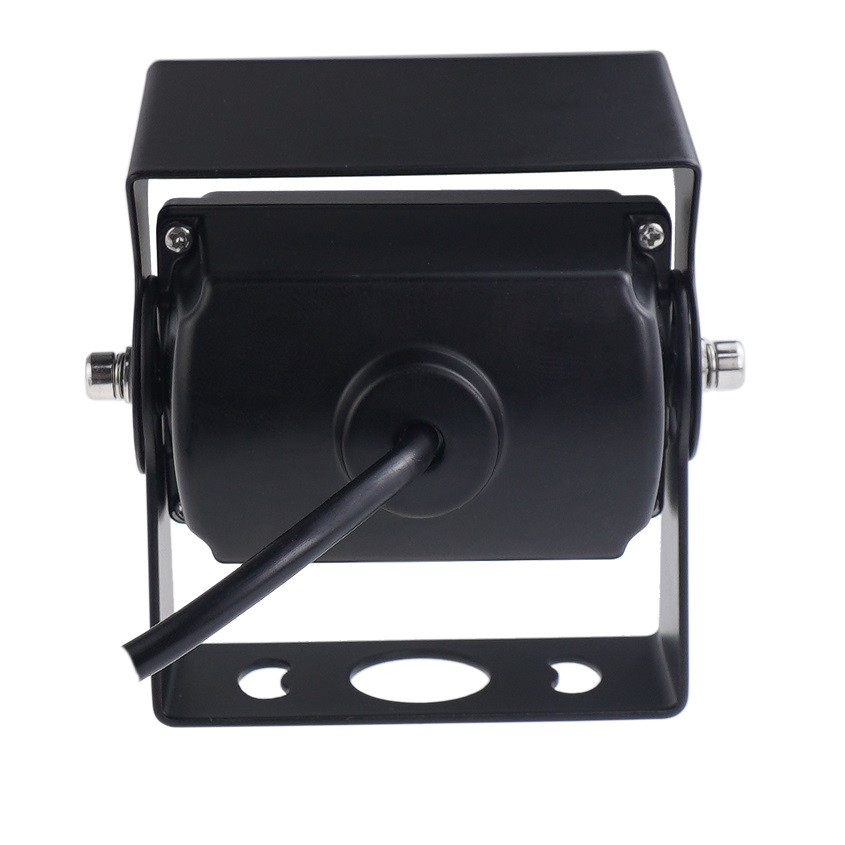

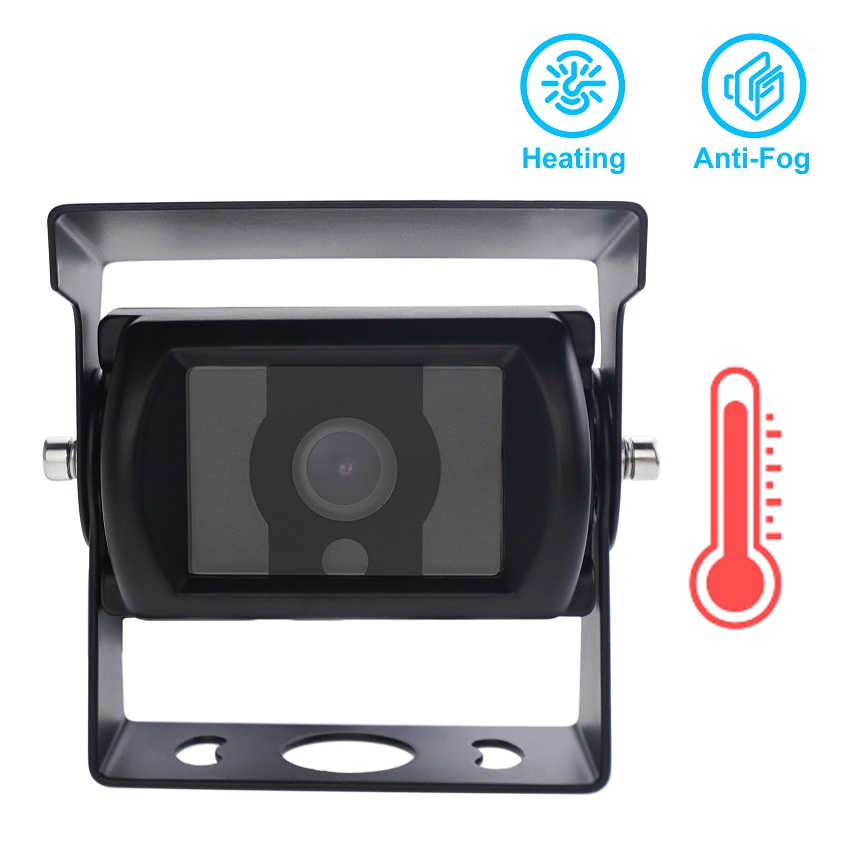

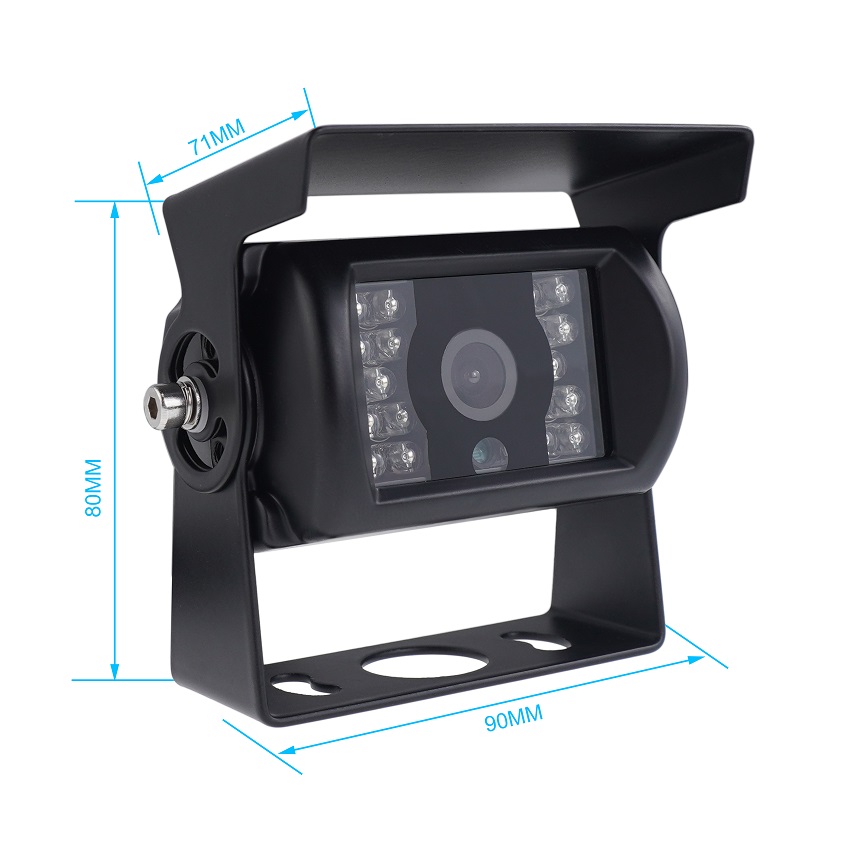

Heavy-Duty Heated Backup Camera with Auto Defog & Defrost

Product Description

Heavy-Duty Heated Backup Camera: Thermostat-Controlled with IR Night Vision

Engineered for Sub-Zero Extremes, Heavy Fleets & Cold-Chain Logistics

Operating commercial fleets, heavy excavators, and refrigerated logistics vehicles in sub-zero environments poses serious safety risks due to lens frost, snow accumulation, and rapid temperature-induced condensation.

The Standtop Heavy-Duty Heated Camera integrates an automatic internal thermostat heating system with high-output infrared night vision. Equipped with a protective sun and snow visor and a heavy-duty mounting bracket, it delivers continuous, unobstructed visibility in dense fog, freezing blizzards, and cold storage operations.

Product Features

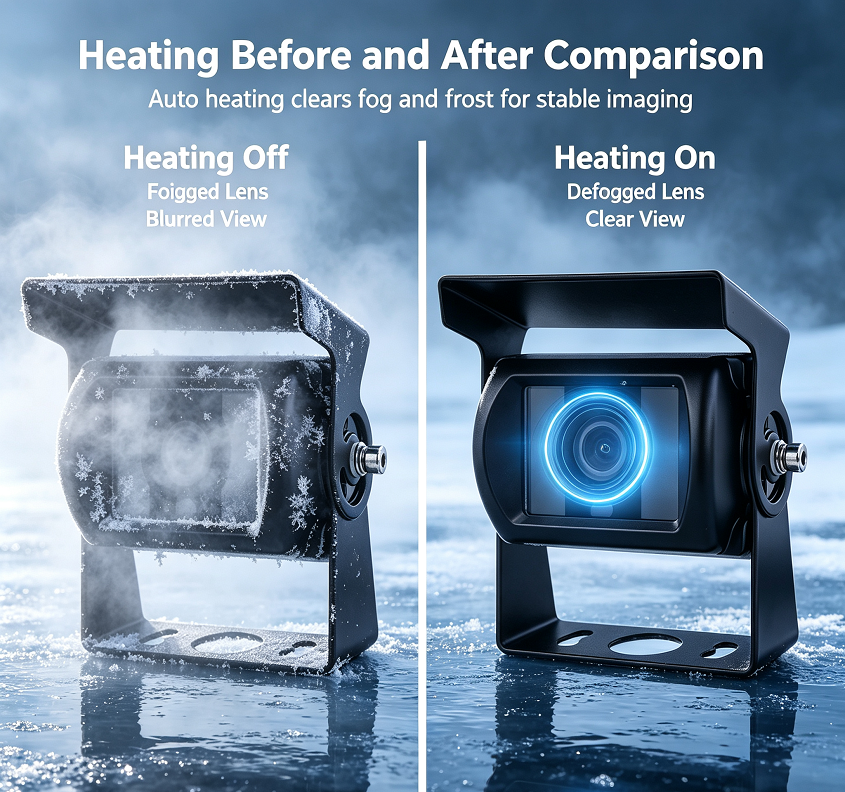

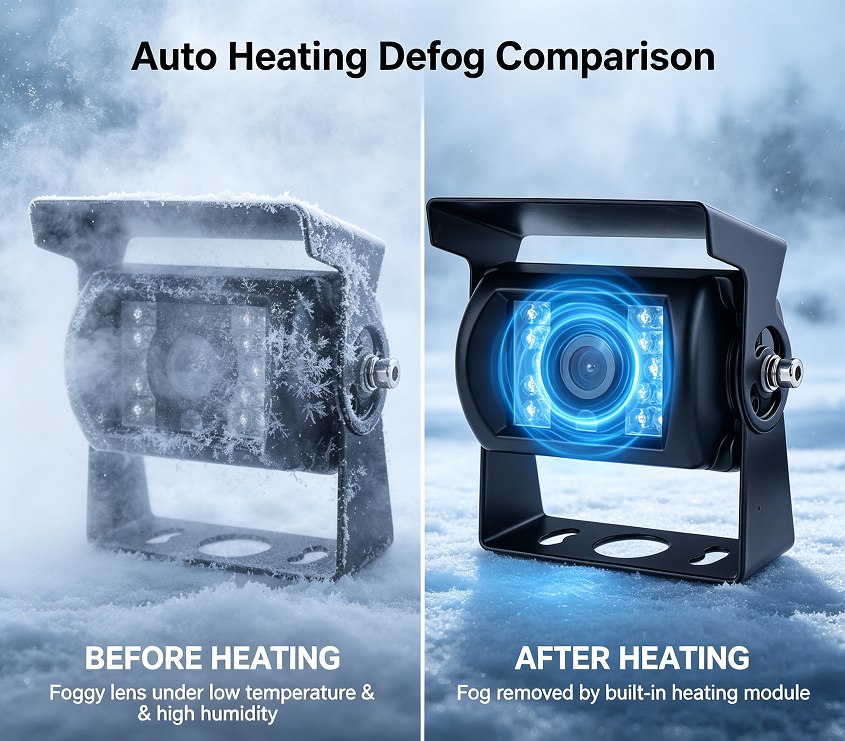

Internal Thermostat-Controlled Auto-Heating:

Built-in thermal sensor automatically triggers internal heating when ambient temperatures drop below +5°C (41°F) and safely cuts power once reaching ≥ +50°C (122°F) , preventing lens freezing, frost buildup, and moisture condensation while conserving vehicle power.
IP69K Complete Weatherproof Rating:

Hermetically sealed to withstand high-pressure steam power washings and deep sub-zero conditions from -40℃～70℃

Protective Sun & Snow Visor with Heavy U-Bracket:

The top-mounted hood physically deflects falling snow, sleet, mud, and overhead sunlight glare, while the heavy-duty U-bracket ensures secure, vibration-resistant mounting on commercial chassis.
Dual Night Vision Options:

Standard high-power IR LEDs (up to 15m) or optional No-IR Starlight configuration engineered to eliminate snowflake glare during heavy blizzard conditions.

Technical Specifications

Image Sensor	1/2.9" CMOS Sensor
Resolution	AHD 1080p
Effective Pixels	1920(H) x 1080(V)
Heating Mechanism	Internal Thermostat Auto-Heating (PTC / Ceramic Heating Element)
Thermostat Trigger Range	Auto ON: +5°C (41°F)/ Auto OFF: +50°C (122°F)
TV System	PAL/NTSC
Viewing angle	120 Degree
Power supply	DC 12V
Waterproof Level	IP69K
IR lights	18Pcs
Image	Mirror or Normal optional
Power Consumption	＜3W
Maximum current	＜350mA
Minimum Illumination	0.1 Lux (day), 0 Lux (with IR)
Video Output	1.0 Vp-p/75 Ohm
IR cut	Yes
Connector	4pin aviation
Operating Temperature	-40℃～70℃, RH 95% MAX

Target Applications & Commercial Fleets

Cold-Chain & Refrigerated Transport: Solves immediate lens fogging and moisture condensation as refrigerated trucks transition between sub-zero cold storage facilities and humid loading docks.
Cold Storage & Material Handling Forklifts: Prevents severe instant lens blinding, condensation, and frost build-up when electric forklifts, reach trucks, and pallet jacks transition rapidly between deep-freeze storage (-20°C or lower) and warm, humid ambient staging areas.
High-Latitude & Sub-Zero Winter Fleets: Delivers reliable rear visibility for snowplows, municipal gritters, and long-haul transport operating across North American winter belts, Northern Europe, Eastern Europe, and Alpine regions.
Heavy Construction & Mining Equipment: Built to withstand continuous mechanical vibration, abrasive dust, and extreme sub-zero weather on excavators, wheel loaders, and dump trucks.
Agricultural & Utility Vehicles: Provides clear reversing and blind-spot coverage in frozen fields, barns, and high-pressure cleaning routines.

Heavy-duty heated backup camera applications: winter maintenance snow plow, commercial freight truck, mining heavy plant, and cold storage forklift

FAQ Section

Q1: How does the internal thermostat heating work in cold weather?

A: The camera features a built-in thermal sensor that automatically initiates heating when the temperature drops to +5°C (41°F) . Once the internal cavity reaches +50°C (122°F), the heating shuts off automatically to maintain balanced operating temperature and conserve vehicle power.
Q2: When should I choose the Non-IR (Starlight) version over the standard 18-IR LED version?

A: The standard 18-IR version is equipped with an internal optical isolation ring to completely eliminate lens-to-glass glare, making it ideal for 0-Lux unlit fleet operations. However, for highway snowplows operating in active heavy blizzards, we offer a Non-IR Starlight option to prevent external light bouncing off airborne flying snow particles, ensuring a cleaner horizon view.
Q3: What commercial vehicles benefit most from this heated camera?

A: It is widely used on refrigerated trucks, cold-chain transport, snowplows, agricultural machinery, and heavy construction equipment operating in freezing, humid, or sub-zero climates.
