The Ultimate RV & Truck 4-Camera System | AI 1080P Wireless Quad View

PRODUCT INTRODUCTION

Item number: ST-777WCS

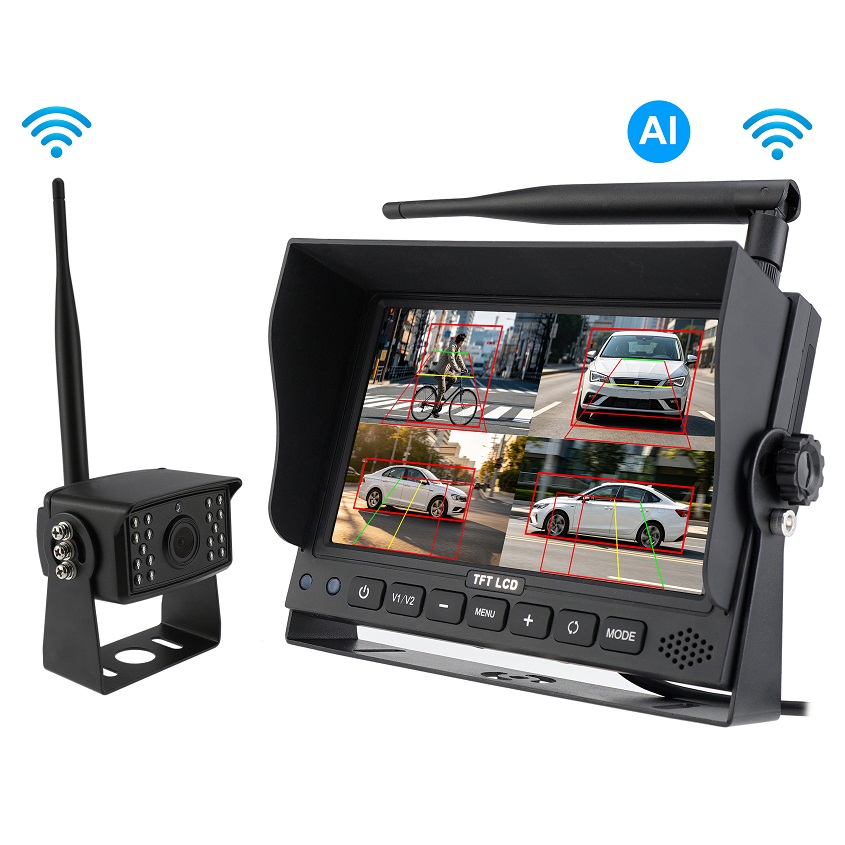

7-inch 1080p AI BSD Wireless Quad View Monitoring System Up to 4 Cameras with DVR

Products Overview:

Standtop 7" AI 1080P Wireless Quad View Monitoring System is an advanced vehicle monitoring solution designed to provide drivers with a clear,smart,and comprehensive view around their vehicles.featuring a high-definition 7-inch screen, intelligent AI detection,wireless digital transmission, full-color imaging, and multi-camera support,this system ensures safer driving and easier reversing in all conditions,primarily designed for vehicles like trucks,RVs,trailers, buses, and heavy machinery,but it can also be used in other applications.

Key Features:

7-Inch HD Monitor: The system includes a high-resolution, full-view 7" IPS LED Panel, 1024*600 resolution
Quad-View Display: The most significant feature is the ability to display real-time video feeds from up to four cameras simultaneously on a single screen, often in a 2x2 grid (quad-view) or other split-screen modes (single, dual, triplex)
High Resolution: The display works with 1080P Full HD cameras for crystal-clear image quality
1080P Wireless Cameras: The system uses 1080P (1920x1080 effective pixels) cameras that transmit video wirelessly
Wireless Technology: It uses a stable 2.4G digital wireless signal to ensure a strong connection with minimal interference, typically effective over distances suitable for large vehicles,transmission Distance 300 meters
Durability: The cameras are generally IP69K waterproof and designed to be weatherproof, shockproof, and vibration-resistant for harsh outdoor/vehicle environments
Night Vision: With 18pcs IR (Infrared) LEDs to provide clear night vision for safe operation in low-light conditions
Integrated AI (Artificial Intelligence): The "AI" feature is the core safety enhancement
Detection: AI algorithms built into the monitor and cameras to intelligently detect and track pedestrians and vehicles, particularly in blind spots
Alerts: This allows the system to provide real-time audio-visual alarms or warnings to the driver when a potential collision risk is detected (e.g., Blind Spot Detection/BSD)
Easy Installation: Simple wireless setup, reducing the need for long and complicated cable runs
Loop Recording: Supports 128G SD card storage for recyle recording and playback, 10hrs recording time
Wide Power Supply Range: Compatible with DC 12–36V vehicles

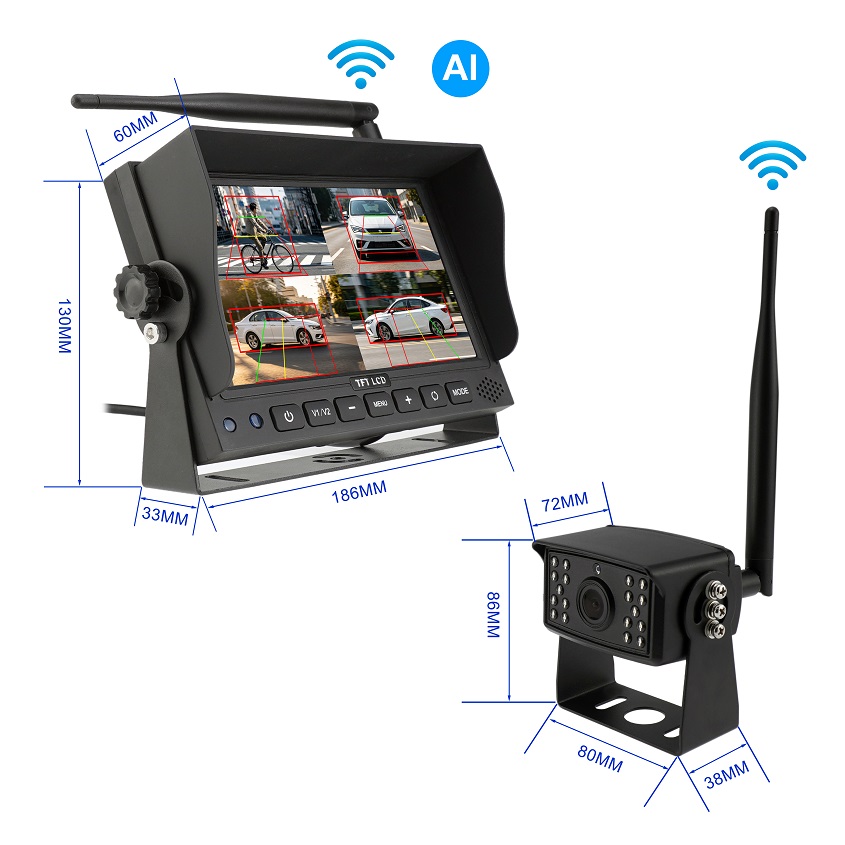

7" Wireless Monitor Specs:

Category	Parameter
Screen size	7inch IPS full view LED panel
Resolution	1024600RGB
Video Input	4 ways Channel Video
Display Mode	Single, dual, triple, quad split
TV System	PAL/NTSC
Power supply	DC 12-36V
Power Consumption	12W
Screen ratio	16:9
Brightness (cd/m2)	500 cd/m2, 1000cd/m2 optional
Viewing angle	L/R 85/85 U/D 85/85
Frequency range	2.4G Digital wireless signal frequency(2412-2484MHz)
Output power	21dBm with power control
Receiving sensitivity	-90dBm
OSD menu	Yes
Connector	Power lead and cigarette lighter
Mounting Options	Dashboard or surface mount
Operating Temperature	-30℃～70℃, RH 95% MAX

Wireless Safety Camera Specs:

Image Sensor	1/3" CMOS 1336
Resolution	AHD 1080P
Effective Pixels	1920(H) x 1080(V), 2MP
TV System	PAL/NTSC
Viewing angle	105-110 Degree Horizontal angle
Power supply	DC 12-36V
Waterproof Level	IP69K
IR lights	18Pcs
Image	Mirror
Transmission Distance	300M
Operating Frequency	Digital wireless
Power Consumption	4W
Connector	Power lead
Body Housing	Zinc alloy housing
Operating Temperature	-30℃～70℃, RH 95% MAX

Display Mode:

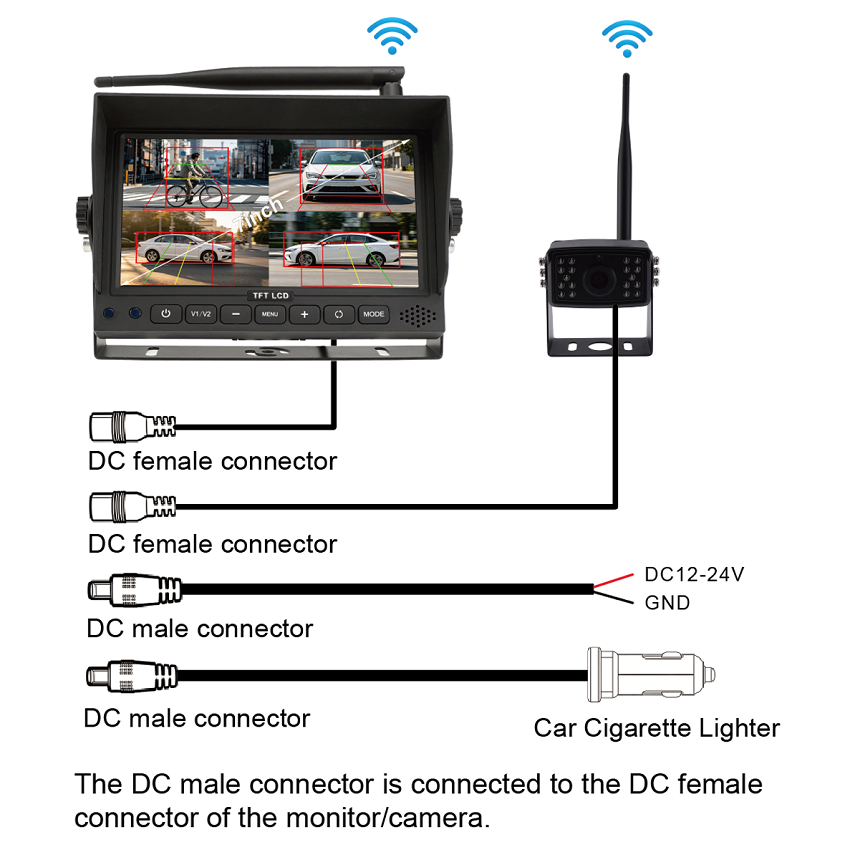

Wire Diagram:

Product Applications:

Perfect for trucks,trailers,RVs,agricultural machinery,and forklifts,helping drivers avoid collisions and improve visibility in all conditions

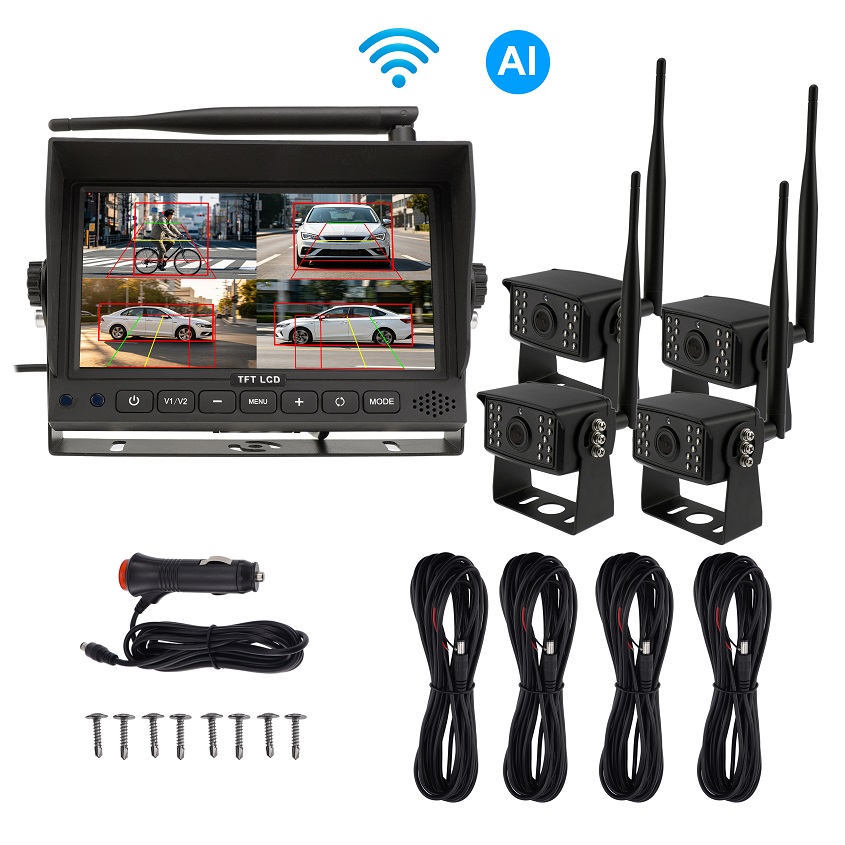

In the box:

1 x 7" 1080p Wirless Monitor
4 x 1080p Wireless Cameras
4 x Power Harness
1 x Car cigarette lighter
5 x 6DB Antenna gain
1 x Screw Kit for installation
1 x Manual
