Product Description

Built specifically for commercial fleets, off-highway vehicles, and open-cab machinery, this 7-inch Rugged Waterproof Vehicle Monitor delivers clear and dependable visual assistance in the toughest working conditions.

Engineered to meet the stringent IP69K protection standard, the fully sealed housing resists high-pressure washdowns, rain, dust ingress, and constant mechanical vibrations. Designed for forklifts, tractors, loaders, and specialty work trucks, it provides operators with clear real-time visibility to eliminate blind spots and boost workplace safety.

Key Features

• Engineered to IP69K Waterproof Standards:

  Features a hermetically sealed enclosure built to withstand high-pressure water jets, steam cleaning, and severe dust exposure, making it ideal for open cabs and daily vehicle washdown routines.

• Heavy-Duty Shock & Vibration Resistance:

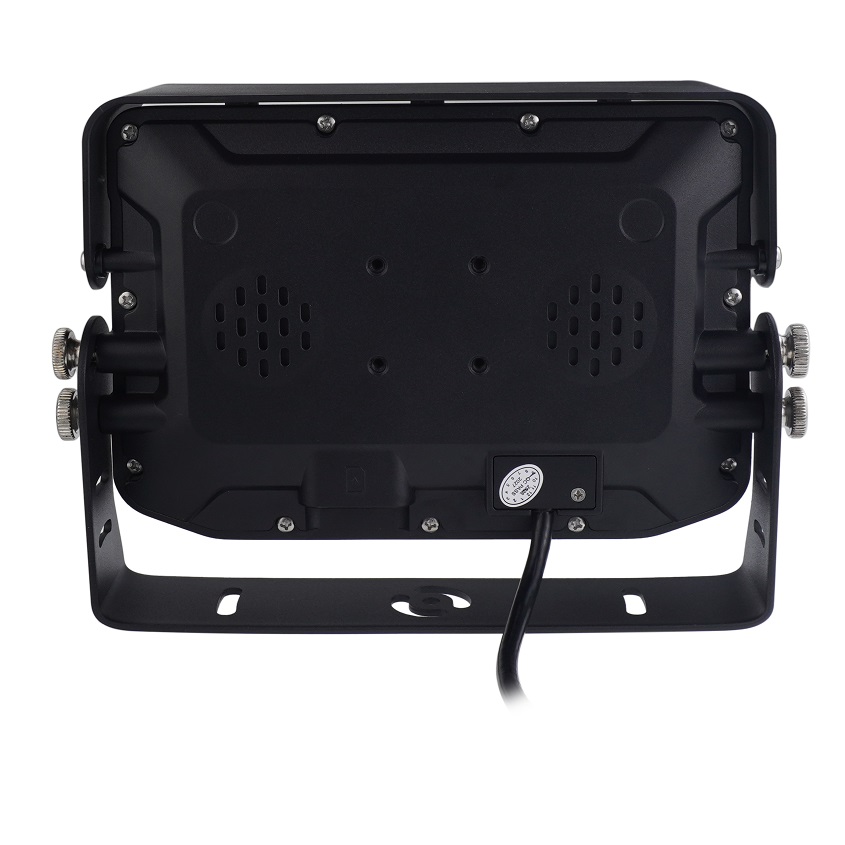

  Equipped with a solid metal U-bracket, stainless steel side-locking knobs, and a reinforced housing designed to absorb up to 10G mechanical impact and sustained engine vibration.

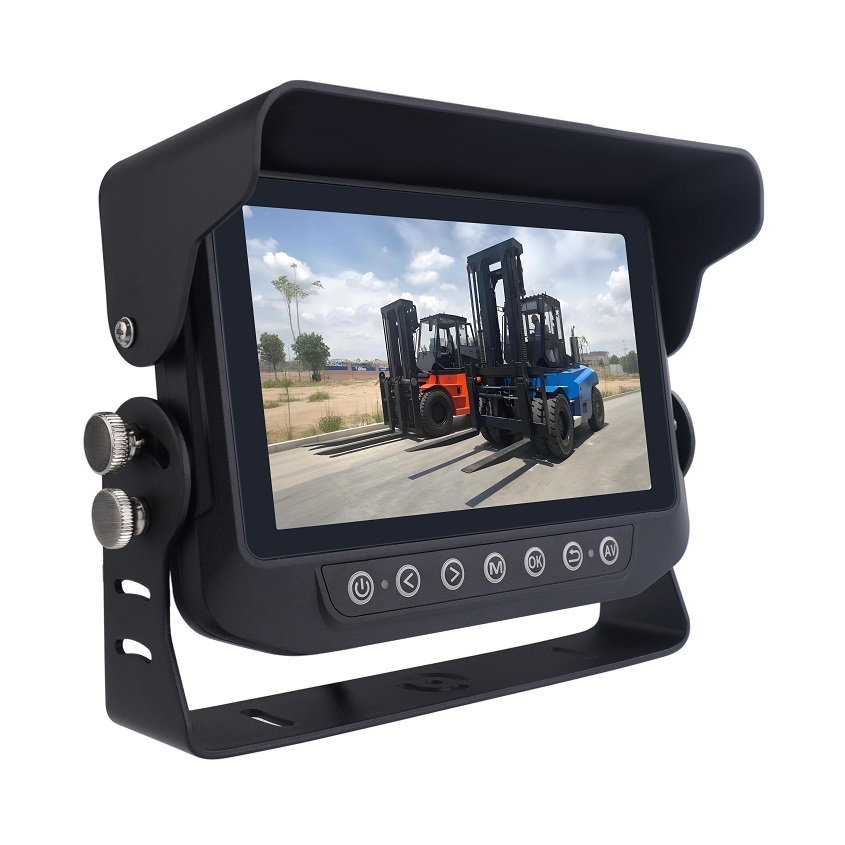

• High-Brightness Outdoor Display:

  Provides crisp contrast and true color reproduction even under direct sunlight, paired with a detachable sun visor to eliminate glare and reflections during outdoor operations.

• Dual Camera Input with Automatic Switching:

  Supports two video inputs (CH1 / CH2) with a dedicated reverse trigger wire. Displays a clean, full-screen image for maximum clarity, automatically switching to the critical camera feed when the vehicle reverses or turns.

• Wide DC 9V–36V Power Input:

  Compatible with both 12V and 24V electrical architectures, featuring built-in overvoltage and reverse polarity protection to handle vehicle electrical spikes.

• Glove-Friendly Front Panel Controls:

  Durable front membrane buttons allow quick adjustment of brightness, contrast, normal/mirror image flipping, and channel selection, easily operable even with work gloves

Technical Specifications

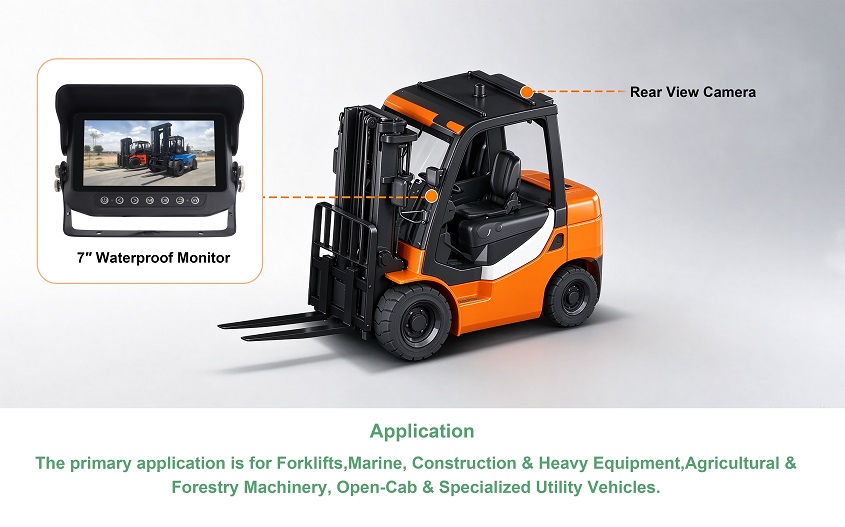

Typical Applications

• Material Handling: Electric forklifts, counterbalance trucks, reach stackers, and yard trucks.

• Agriculture & Forestry: Tractors, combine harvesters, forestry logging equipment, and sprayers.

• Construction & Earthmoving: Wheel loaders, excavators, compaction rollers, and skid steers.

• Specialized Fleet: Road sweepers, refuse trucks, and municipal utility vehicles.

Standtop's 7-inch 1080p Waterproof monitor works on Forklift,it was provided by our customer by Sep,2025

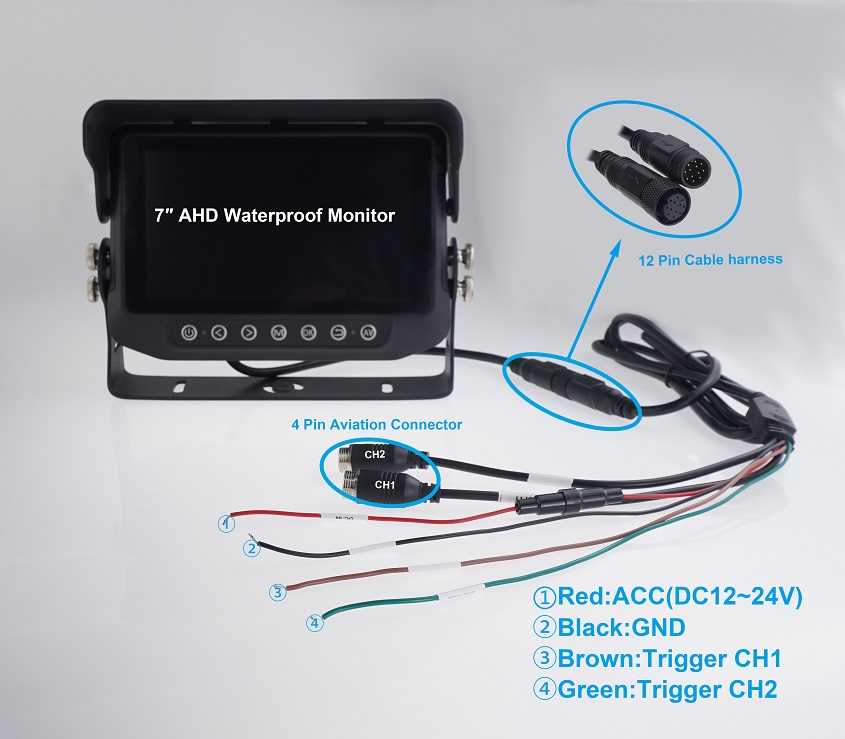

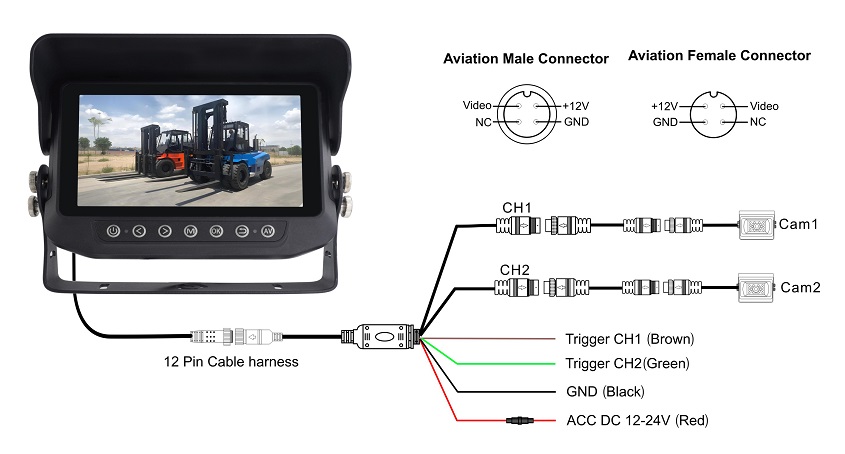

Wire Diagram

What's in the box

1 x 7" 1080P Waterproof  Monitor
1 x U-shaped mount bracket
1 x Power Harness
1 x Screw Kit for installation
1 x Manual

FAQs

Q1: Does this monitor support split-screen viewing?

No. This monitor is engineered for full-screen display to maximize visibility and image detail for the operator. It accepts two camera inputs and allows smooth switching between channels manually via the front button or automatically via the reverse trigger line.

Q2: Can the monitor handle direct high-pressure washing?

Yes. The enclosure is designed and built to IP69K waterproof and dustproof specifications, protecting internal components against high-pressure water spray and heavy rainfall during regular vehicle cleaning.

Q3: What type of camera connection does it use?

It utilizes standard 4-pin aviation screw-lock connectors, ensuring a secure, waterproof, and vibration-proof link that carries video, power, and ground in a single cable.

Q4: What are the mounting bracket options for forklifts and tractors?

Metal U-Bracket (Standard), Pedestal Mount optional.

--------------------------------------------------------------------------------------------------------------------
