Product Description:

Core Capabilities：

• Integrated DVR Recording: Supports up to 256GB TF card for continuous loop recording; provides critical video evidence for accidents and insurance claims.

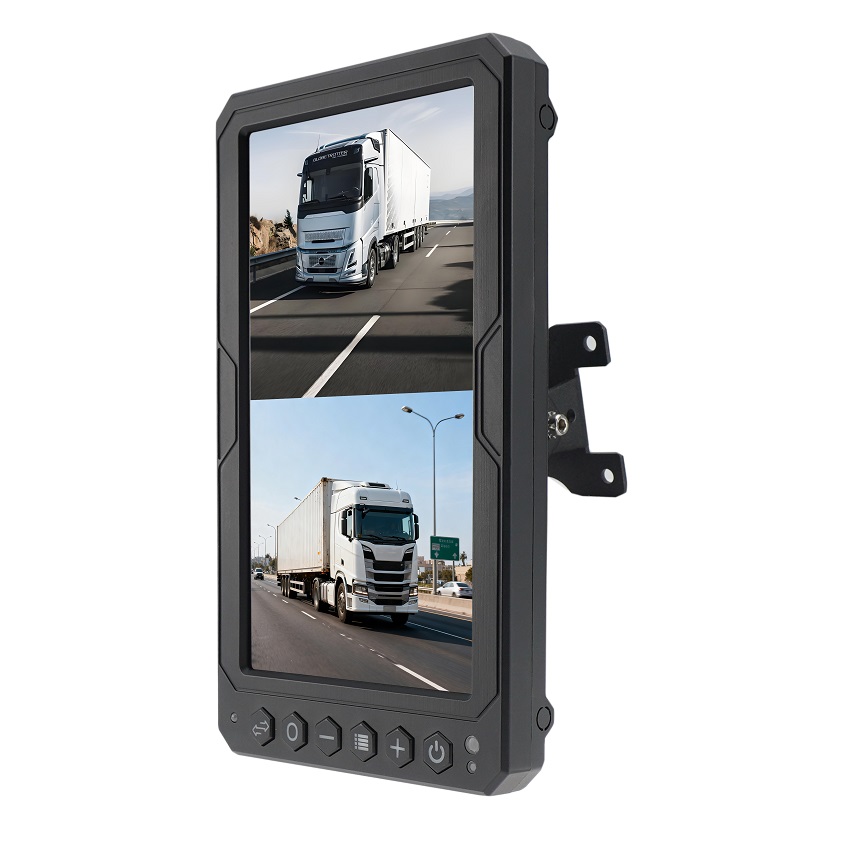

• Full Blind Spot Coverage: Split-screen mode displays both the vehicle side and rear-end, eliminating "death zones" for trailers and buses.

• All-Weather HD Clarity: IP69K waterproof cameras ensure clear vision in heavy rain, snow, and fog.

• Anti-Glare Night Vision: Automatically balances high-beam glare and enhances dark road visibility for safer night driving.

• Zero-Latency Response: Automotive-grade chipset ensures real-time video transmission (<50ms) with no lag.

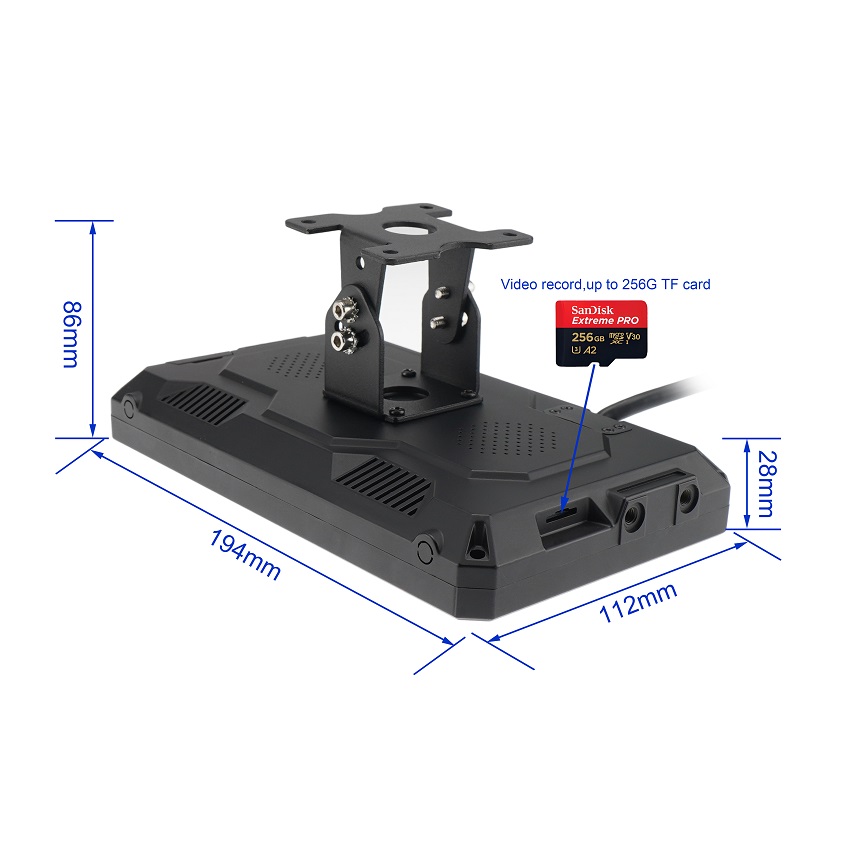

Product Specs:

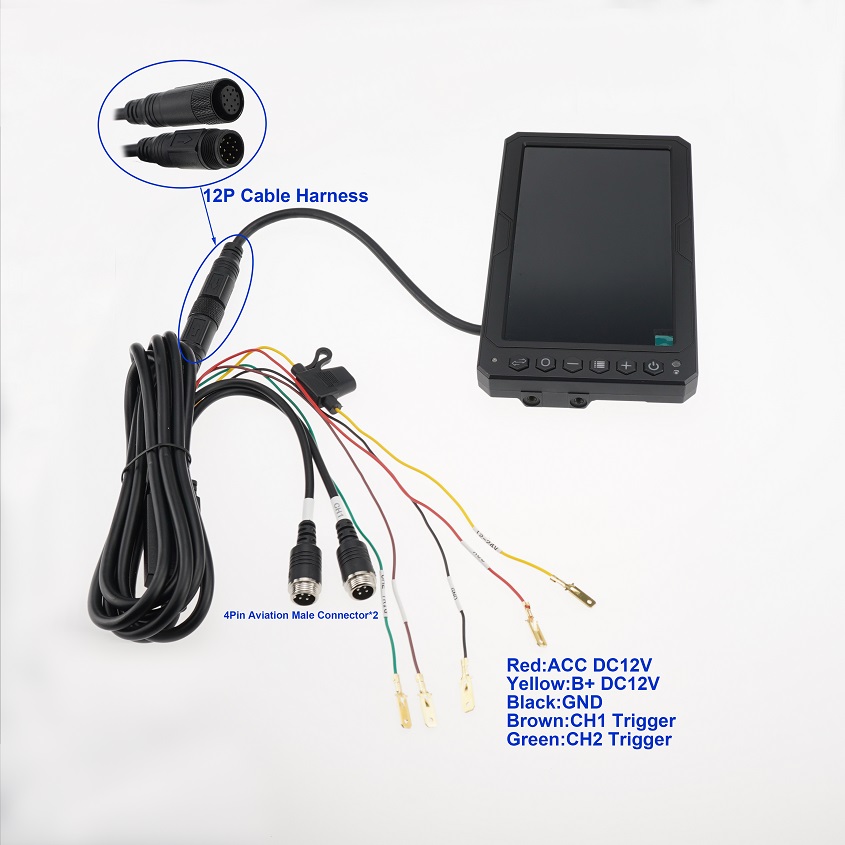

Wire Diagram:

Ideal Applications:

• Logistics & Freight: Semi-trucks, heavy-duty trailers, and delivery vans.

• Public Transport: City buses, coaches, and school buses.

• Specialty Vehicles: Waste management trucks, construction vehicles, and emergency services

What's In the Box:

1 x 7" HD 1080P Monitor
1 x  mount bracket
1 x Power Harness
1 x Remote Control
1 x Screw Kit for installation
1 x Manual

Frequently Asked Questions (FAQ)

Q1: Can this system completely replace traditional glass mirrors?

A: Yes. Our system is designed to provide a wider, clearer view than traditional Class II and Class VI mirrors. However, we recommend checking your local transportation regulations (such as DOT in the US or ECE R46 in Europe) regarding digital mirror replacements for specific vehicle types.

Q2: How does the DVR function work with the 256GB TF card?

A: The system features automatic loop recording. Once the 256GB TF card is full, it will automatically overwrite the oldest footage. The high-capacity 256GB support allows for approximately 45-60 hours of high-definition video storage, providing vital evidence for insurance and accident claims.

Q3: Is the monitor visible under direct sunlight?

A: Absolutely. The 7-inch IPS display features a high-brightness panel (up to 1000 nits) and an anti-glare coating. It remains crisp and legible even in bright, direct sunlight—conditions that often make smartphone screens or cheap monitors unreadable.

Q4: How difficult is the installation process?

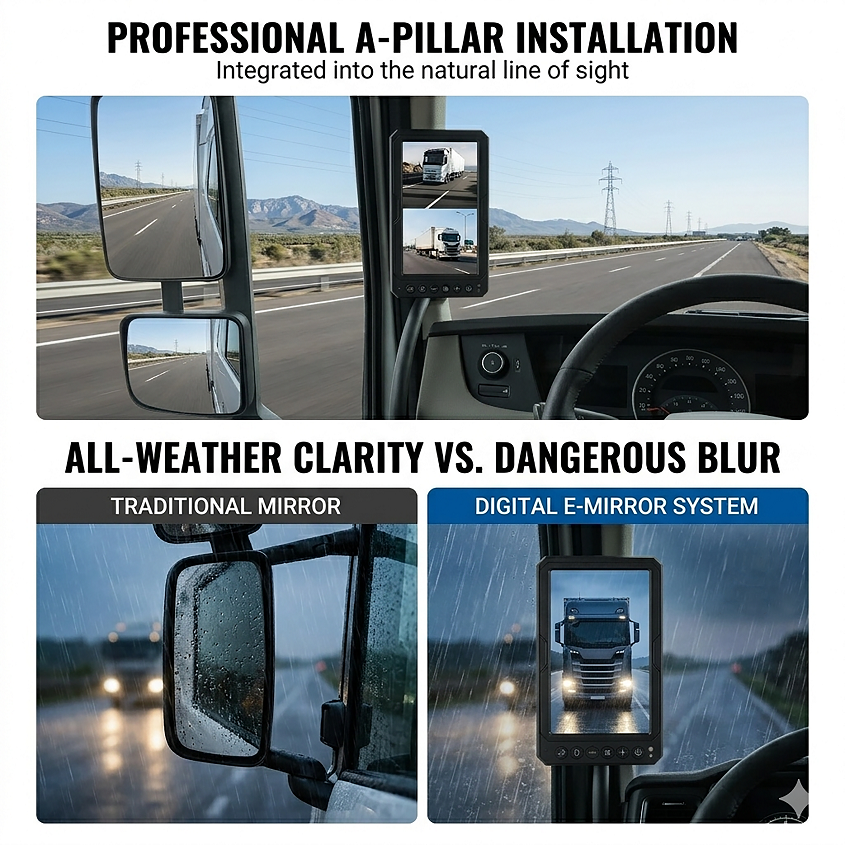

A: It is designed for professional fleet integration. The system uses standard 4-pin aviation connectors for a stable, plug-and-play connection between the cameras and monitors. We provide dedicated A-pillar mounting brackets that fit most major truck brands (Volvo, Scania, Freightliner, etc.) with minimal cabin modification.

Q5: Does the camera system work in extreme temperatures?

A: Yes. The system is built for industrial use with an operating temperature range of -30°C to +70°C (-22°F to 158°F). (Suggestion cameras Side view camera  Dual Lens Side Mount Camera)

Q6: Is there any image lag during high-speed driving?

A: Safety is our priority. Using an automotive-grade image processor, the latency is kept under 50ms. This ensures that the digital feed is synchronized with real-time road conditions, providing a natural and safe driving experience at highway speeds.

Q7: If have more mounted bracket optional?

A: Yes, we have different types mounted bracket, you can ask us.
